套標機的刀盤機構的設計理念：

1、要使套標機速度達到400bpm以上，每0.15秒就要完成一次套標循環的動作，下標與(yu) 切標電機必須頻繁起停，定位精準。

2、切標電機旋轉帶動刀盤旋轉一周完成切標動作，切標電機的定位不準會(hui) 使刀盤過衝(chong) ，最終導致刀盤堵標。

以上兩(liang) 點是設計刀盤時必須要注意的點：要想刀盤高速運轉必須要考慮到刀盤裝刀數量。設計一般刀盤我們(men) 都是以四把刀，六把刀為(wei) 例。

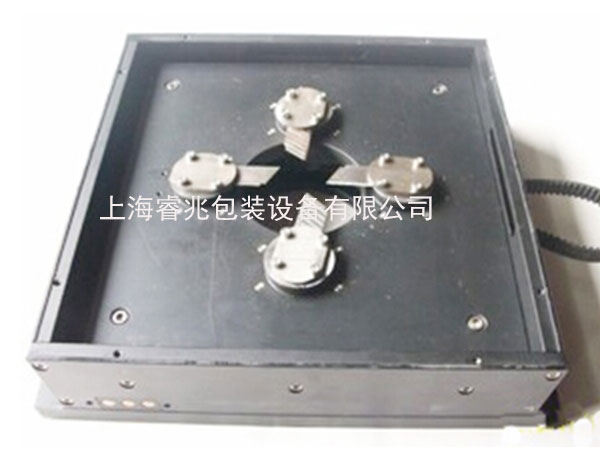

例如四把刀的刀盤：

四把刀相對簡單一點，安裝和調試都比較簡單。它是由四個(ge) 軸承安裝座連接著四根軸，軸上鎖定同步輪然後呢有一條同步帶，四個(ge) 軸承安裝座都安裝在一塊大板上，都是對角等分安裝的。當然安裝的距離都是由設計師按產(chan) 品的大小高低而定的。同步帶把四個(ge) 同步輪連在一起，四個(ge) 同步輪的大小要一樣大。當然，旋轉四個(ge) 同步輪模擬動作的時候要把刀片裝上去模擬，刀片一定不能碰到邊上的的零件。

這裏跟大家說一下要注意的地方，就是軸承座與(yu) 軸配合要緊配，一般公差不能偏出0.01mm，否則配合太鬆會(hui) 導致高速運轉的時候，容易出現機械故障，切標不準等等的原因。

Design concept of cutter head mechanism of sleeve labeling machine:

1. In order to make the labeling machine speed above 400bpm, the labeling cycle must be completed every 0.15 seconds. The subscript and cutting motors must be started and stopped frequently, and the positioning is accurate.

2. The rotation of the cutting motor drives the cutter head to rotate for one week to complete the cutting operation. The inaccurate positioning of the cutting motor will cause the cutter head to overshoot and eventually cause the cutter head to block the label.

The above two points are the points that must be paid attention to when designing the cutter head: the high-speed operation of the cutter head must consider the number of cutters installed on the cutter head. We design four cutters and six cutters as examples.

For example, the cutter head of four knives:

The four knives are relatively simple, and installation and commissioning are relatively simple. It is connected to four shafts by four bearing mounts. The synchronous wheel is locked on the shaft and then there is a synchronous belt. The four bearing mounts are all mounted on a large plate and are installed equally and diagonally. Of course, the installation distance is determined by the designer according to the size of the product. The timing belt connects the four synchronization wheels together, and the four synchronization wheels must be the same size. Of course, when the four synchronous wheels are rotated to simulate the action, the blade must be installed to simulate, and the blade must not touch the parts on the side.

Here I want to tell you what to pay attention to, that is, the bearing seat and the shaft must be tightly matched, and the general tolerance must not deviate from 0.01mm, otherwise the too loose fit will cause high-speed operation, prone to mechanical failure, inaccurate cutting, etc the reason.
