適用範圍：

自動理瓶機適用於(yu) 圓瓶、方瓶的自動傳(chuan) 送，如連接到貼標機、灌裝機、旋蓋機的輸送帶。

功能特點：

自動送瓶，提高效率；可應用於(yu) 流水線中間連接處，作為(wei) 緩衝(chong) 平台，減短輸送帶長度。適用瓶子範圍可自由調整，瓶子輸送速度30~200瓶/分鍾，速度可無級調整，方便生產(chan) 安排。

Scope of application:

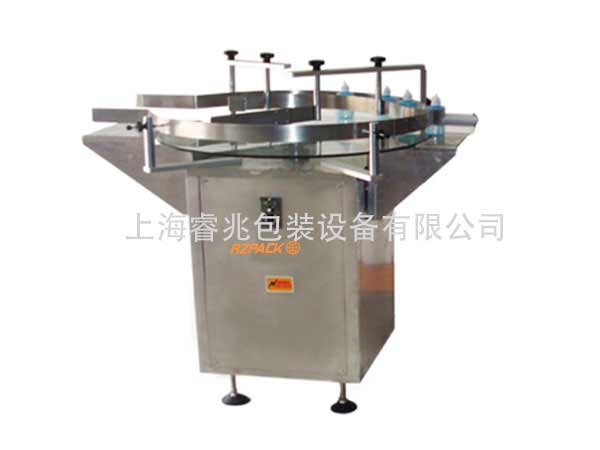

Automatic bottle unscrambler is suitable for automatic conveying of round bottles and square bottles, such as conveyor belts connected to labeling machines, filling machines and capping machines.

Features:

Automatic bottle feeding to improve efficiency; it can be used in the middle of the assembly line as a buffer platform to shorten the length of the conveyor belt. The applicable bottle range can be adjusted freely. The bottle conveying speed is 30 ~ 200 bottles / minute, and the speed can be adjusted steplessly to facilitate production arrangements.

關(guan) 鍵技術參數/ Key technical parameters：

◆適用產(chan) 品直徑/ Applicable product diameter：φ20mm～φ100mm

◆適用產(chan) 品高度/ Applicable product height：20mm～150mm

◆重量/ Weight（kg）：約60kg/ about 60kg

◆頻率/ Frequency（HZ）：50HZ

◆電壓/ Voltage（V）：220V

◆功率/ Power（w）：120W

◆設備外形尺寸/ Outline dimensions（mm）（長×寬×高length × width × height）：990×900×1040
