PET瓶裝醬油醋灌裝線適用範圍：

PET瓶裝醬油醋灌裝線用於(yu) 醬油醋、茶飲、果汁飲料等產(chan) 品的熱灌 裝生產(chan) 。該機集衝(chong) 瓶、灌裝、旋蓋為(wei) 一體(ti) ，設計科學合理，操作簡便，是熱灌裝飲品的首 選生產(chan) 設備。

功能特點：

整機采用卡瓶頸懸掛運行工態設計，采用新一代不鏽鋼翻轉式瓶夾，采用磁力扭矩式擰蓋頭，PET瓶裝醬油醋灌裝線采用灌裝閥升降，能滿足95度以下熱灌裝技術要求。整機采用人機界麵觸摸屏按鈕、PLC電腦控製、設有缺蓋、過載保護報警裝置。

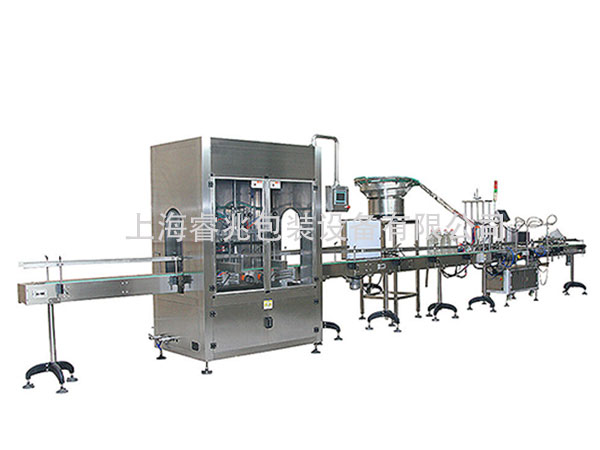

PET bottled soy sauce vinegar filling line：

PET bottled soy sauce vinegar filling line is used for hot filling production of soy sauce vinegar, tea, fruit juice and other products. This machine integrates flushing, filling and capping. It has a scientific and reasonable design and easy operation. It is the first production equipment for hot filling beverages.

Features:

The machine adopts the card bottleneck suspension operating mode design, uses a new generation of stainless steel flip bottle clamps, uses magnetic torque caps, and the PET bottle soy sauce vinegar filling line uses a filling valve to lift and lower, which can meet the hot filling technical requirements below 95 degrees . The whole machine adopts human-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device.

技術參數/Technical Parameters：

適用瓶型：方形或圓形（聚酯材質  塑料螺紋蓋）/ Applicable bottle type: square or round (polyester material, plastic screw cap)

圓瓶直徑/ Round bottle diameter：≤93mm、方瓶/ square bottle≤90x90mm；瓶高/ bottle height 150-320mm

灌裝容量/ Filling capacity：330-1500ml

灌裝精度/ Filling accuracy：±1.5mm

氣源壓力/ Air source pressure：0.4-0.8mpa
