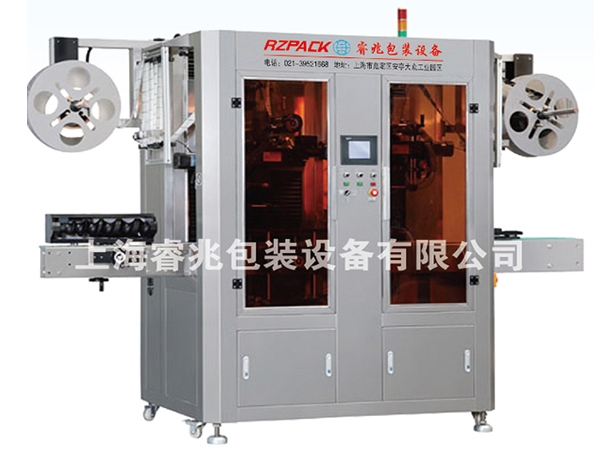

RZ-250B雙機頭套標機特點：

根據市場需求，開發了雙機頭結構可以滿足瓶口瓶身，同時套標也可以采用奇偶套標提高效率，一機兩(liang) 用，節省成本，提高了生產(chan) 效率，節省了設備麵積。

電器配置：采用同等PLC，定位模塊和伺服電機以及變頗器，觸控屏人性化操作，全自動調整。

適用瓶型：圓瓶、方瓶、扁瓶、曲線瓶、杯型等不規則瓶型。

RZ-250B Double-head Marking Machine Characteristics:

" According to the market demand, developed a double-head structure can meet the bottle bottle label at the same time, also can be used In a parity of label to Improve efficiency, Used a dual-use, cost savings, Improve the production efficiency, save the area of equipment.

" Electrical configuration: using equivalent PLC, positioning module and a servo motor and Inverter, touch screen human-Ized operation, fully automatic adjustment.

Applicable bottle type: round bottles, square and flat bottles, bottle type Irregular curve type bottle, cup, etc.

技術參數/Technical Parameters:

輸入功率/Input Power:3.0KW

輸入電壓/lnout Voltaae:m3.380/220VAC

王產(chan) 效率/irroaucuon emciency:2*250瓶Bottle/分min

主機尺寸Most slze:3200L'1050W'2100H

適用瓶身直徑/Apply the bottle diameter 26-130

適用標簽長度/Apply the label length:30MM-260MM

適用標簽厚度/仰ply label thickness:0.04MM-0.13MM

適用紙管內(nei) 徑/Tube diameter shall apply:3'-10'

重量/welght:560KG
